How To Choose The Pump In The Construction Of Swimming Pool
The pool water pump is an important part of the water treatment in the swimming pool, which relates to the normal circulation and filtration of the water in the swimming pool. Therefore, during the construction of swimming pool, it is necessary to choose the swimming pool pump to better cooperate with the filtration and circulation system of swimming pool to ensure the cleanliness of swimming pool water.
How to choose the pump in the construction of swimming pool?
When the excess lift of the swimming pool is too large, it will affect the filtration accuracy, cause personal injury, overload and overheat, burn out the motor, vaporize and cavitation, and damage the water pump and pipeline system. For the newly designed swimming pool and spa, the lift should be calculated after comprehensive consideration of various factors according to the engineering practice.
For the system that has already been operated, check the readings of the vacuum gauge before the pump and the pressure gauge after the pump, and determine the actual working system pressure head. If there are major problems, it is necessary to deal with them as follows:
1) Replace the water pump, and choose the pool water pump with similar lift and flow rate to the actual work.
2) Cut and reduce the outer diameter of the impeller, reduce the rated lift of the pump, and make it close to the actual working lift of the pump.
3) Before the pump starts, close the valve on the outlet pipe of the pump (the valve is located in front of the sand cylinder behind the pump), start the motor, and gradually open the valve after the pump runs smoothly. By controlling the opening size of the outlet valve, the flow of the water pump is reduced, thus reducing the load and calorific value of the water pump.
（FENLIN CD Series Swimming Pool Water Pump↑）
The water pump needs to be in contact with the pool water for a long time, and chlorine needs to be added to the pool water in the process of water treatment. Chlorine has certain corrosiveness. When choosing a high quality swimming pool pump, the pump should be waterproof and corrosion-resistant. Secondly, the choice depends on the configuration of the swimming pool pump, mainly on the water flow that can be driven by the swimming pool pump when it is running, the noise level at work, and whether the subsequent cleaning and maintenance is convenient. At the same time, it is also necessary to investigate the safety performance of the water pump in use, as well as the stability during operation.

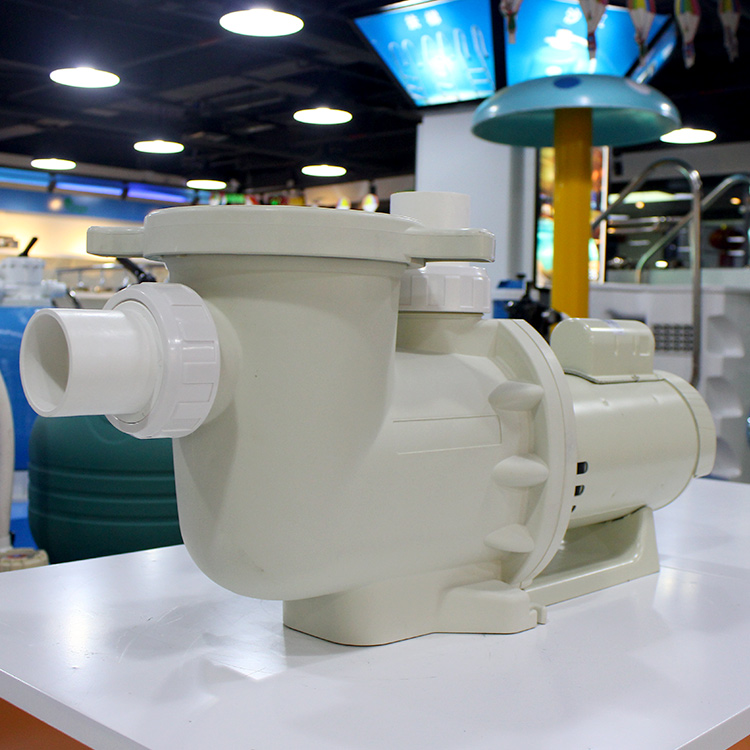

（FENLIN New Arrival STP Series Pool Water Pump↑）
Design requirements of circulating water pump in specification:
The selection of circulating water pump for swimming pool shall meet the following requirements:
(1) The rated flow rate of the pool water pump should not be less than the calculated circulating water flow rate of the pool water circulating purification treatment system to ensure the required flow rate of the pool water circulating cycle;
(2) The lift of water pump should not be less than the geometric height of water supply, the resistance of circulating purification treatment system equipment and pipeline system and the sum of outflow head required at the water inlet of pool multiplied by the calculated value of safety system of 1.10;
(3) The pool water pump should be a special variable frequency speed regulating pump for swimming pools with high efficiency, energy saving, corrosion resistance and low noise;
(4) The circulating water pump of pressure filter should not be less than 2 sets, and a standby pump should be set to run alternately with the working pump;
(5) The backwashing pump of quartz sand filter should adopt the design of parallel operation of working pump and standby pump of pool water circulating pump, and check and adjust the working parameters of circulating pump according to the flow rate and lift required for backwashing of a single filter.

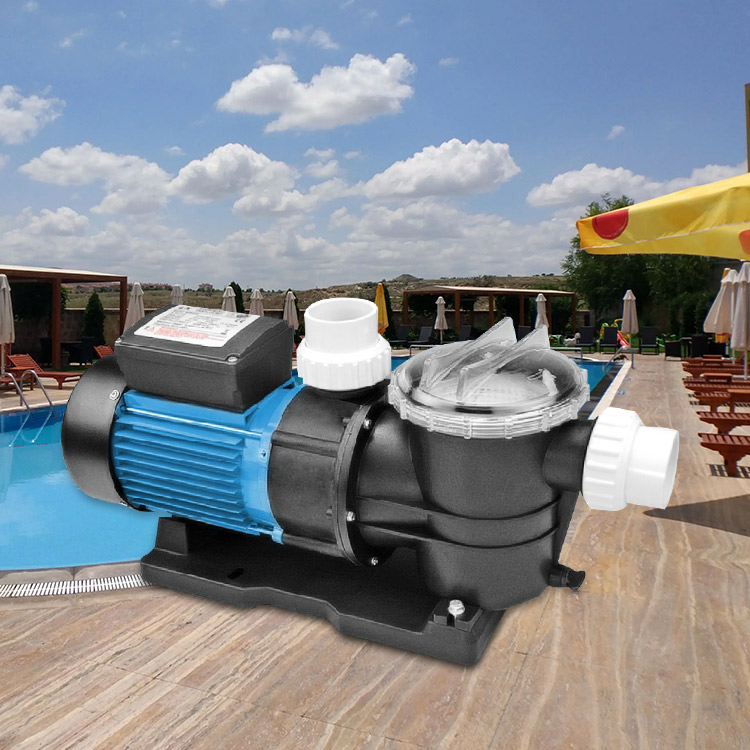

（FENLIN HLD Series Pool Water Pump↑）
FENLIN swimming pool water pump has the advantages of low noise, small vibration and long service life, and is suitable for large, medium and small swimming pool sand tanks supporting pressurized water circulation, hot spring baths and slag filtration.
