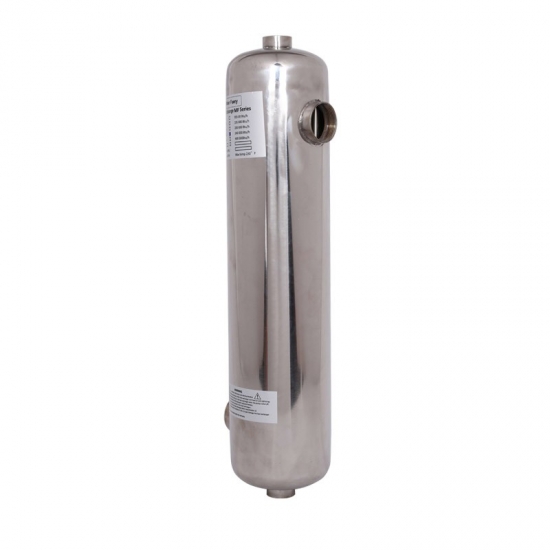

This Tube & Shell Pool Heat Exchanger is perfect for high-pressure setups. The 316 L Stainless Steel Tube and Shell Heat Exchanger’s function by one fluid running through the tube, while another fluid is running around the tube. There is a bundle of tubes inside a shell configuration, hence the name. It's 316 L Stainless Steel welded structure reinforces the strength and high-quality performance, quality matters to us because it benefits you.
Brand:
Finn ForstItem NO.:
MF series pool heat exchangerOrder(MOQ):
1Payment:
T/T, L/C, Paypal, cash, etc.Product Origin:
ChinaShipping Port:
Guangzhou or ShenzhenLead Time:
normally 7-15 working days after deposit or accordinglySize:
CustomizedMaterial:
Stainless SteelThickness:
CustomizedColor:
Satinless steel/Black/customizedLogo:
CustomizedApplication:
Swimming PoolChina Suppier Tube Thermostat Pool Heat Exchanger

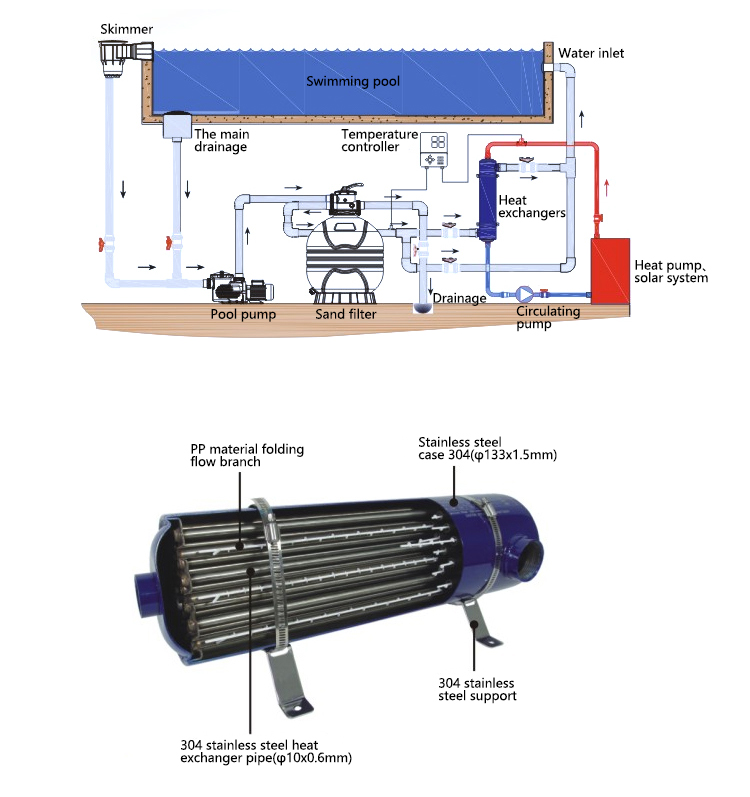

A swimming pool heat exchanger uses hot water from a boiler or solar heated water circuit to heat the pool water. Heat is transferred by conduction through the exchanger materials which separate the mediums being used.Heat exchangers allow heat from a fluid (a liquid or a gas) to pass to a second fluid (another liquid or gas) without the two fluids having to mix together or come into direct contact. The essential principle of a heat exchanger is that it transfers the heat without transferring the fluid that carries the heat.

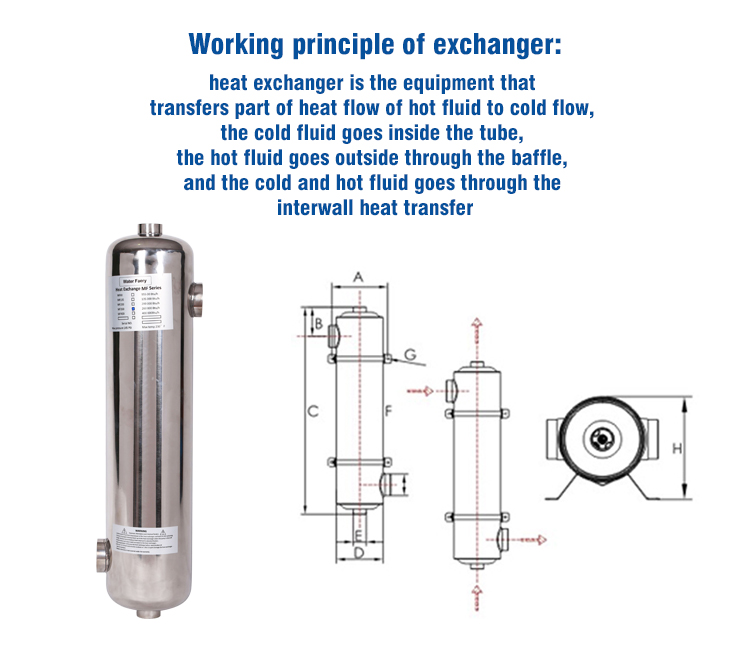

Size of Pool Heat Exchanger:
| Model | A | B | C | D | E | F | G | H |
| MF80 | 160mm | 75mm | 292mm | Φ133mm | 1‘’ | 1.5‘’ | Φ6mm | 165mm |
| MF135 | 160mm | 75mm | 355mm | Φ133mm | 1‘’ | 1.5‘’ | Φ6mm | 165mm |
| MF200 | 160mm | 75mm | 485mm | Φ133mm | 1‘’ | 1.5‘’ | Φ6mm | 165mm |
| MF260 | 160mm | 85mm | 613mm | Φ133mm | 1‘’ | 2‘’ | Φ6mm | 165mm |
| MF400 | 160mm | 85mm | 1070mm | Φ133mm | 1.5‘’ | 2‘’ | Φ6mm | 165mm |
Pool Heat Exchanger Technical Parameters:
| Model | Power | Weight |
Hot Water Flow （L/min） |
Pool flow （L/min） |
|
| KW | kBtu/h | kg | |||
| MF80 | 28 | 28 | 3.5 | 18 | 150 |
| MF135 | 40 | 135 | 4.0 | 25 | 200 |
| MF200 | 60 | 200 | 5.2 | 30 | 250 |
| MF260 | 75 | 260 | 6.4 | 35 | 300 |
| MF400 | 120 | 400 | 10.9 | 50 | 360 |
Pool heat Exchange Features:
1. Constructed of high-quality corrosion-resistant stainless steel
2.Specially designed built-in flow restrictor to assure maximum heat exchanger.
3.Designed to minimized pressure loss in the heating system.
4. Compact in size and require a minimum installation space-light weight.
5. Equipment with stainless steel holding brackets
Pool heat exchanger detail:
1. Pool heat exchanger is versatile
◆Energy conservation &environmental protection
◆Open as soon as hot
◆Simple structure
◆Continuous operation
2. The product is durable and easy to use
◆304 stainless steel
◆Corrosion resistance, fast heat transfer eiffciency and rust prevention
3. Tube heat exchanger
◆The storage type
◆Cold and hot water do not mix with each other
◆No pollution, Continuous constant temperature

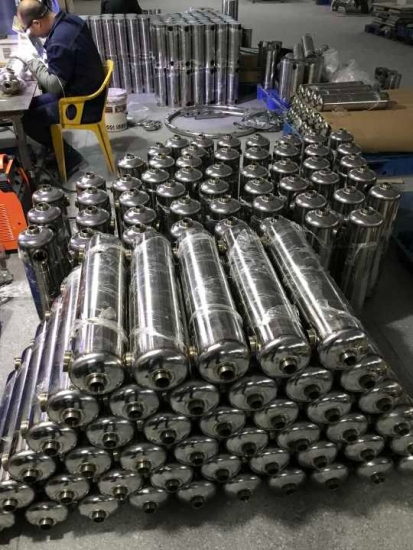

As a professional swimming pool equipment supplier , fenlin provides high quality pool heat exchanger, with strict quality control for the products.Fenlin has a large factory in China, providing you with a wide range of choices, we guarantee to give you first-class product quality and service. High quality pool heat exchanger can be supplied in bulk, shipped directly from the factory, only the factory price
