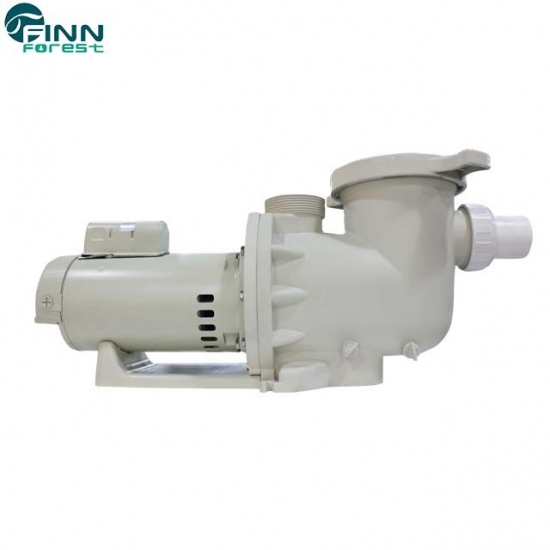

Fenlin CD pool water pump is a perfect pump for those looking for heavy-duty construction and 2.0~7.5 HP motor for high performance. A big plus for this unit is that it is compatible with all cleaning systems and filters as well, which makes it so much easier when setting it up. It really delivers in terms of efficiency, while also saving on electricity costs.
Item NO.:
CD Pool Water PumpOrder(MOQ):
1Payment:
T/T, L/C, Paypal, cash, etc.Product Origin:
ChinaShipping Port:
Guangzhou or ShenzhenLead Time:
normally 7-15 working days after deposit or accordinglySize:
CustomizedChina Supplier Variable Speed Swimming Pool Water Pump
Fenlin CD series pool water pumps are available in a range of different HP sizes and capacities. At 3 HP, it's definitely a powerful machine. It is designed to operate at 220 V or 380 V, which also helps save power. While it does help save power, it doesn't sacrifice the power of the motor. Most importantly, the Fenlin CD series pool water pump is quiet.

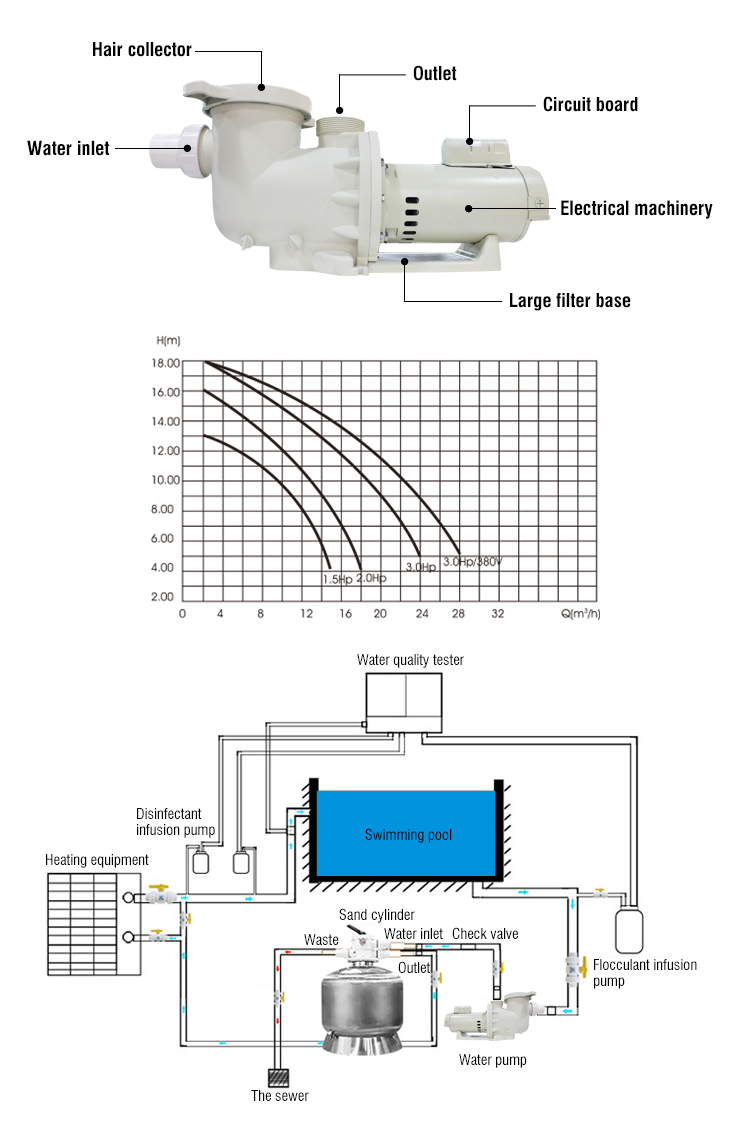

Fenlin CD series pool water pumps Product Parameters:
| Model | Voltage（V） | Power | Hmax（m） | Qmax（m3/h） | Motor Speed（r/min） | Port Size（mm） | |
| KW | HP | ||||||
| CD-20 | 220V/50Hz | 1.5 | 2.0 | 18 | 35 | 2800 | 63 2.0'' |
| CD-30 | 220V/50Hz | 2.2 | 3.0 | 20 | 40 | 2800 | 63 2.0'' |
| CD-35 | 220V/50Hz | 2.6 | 3.5 | 20 | 43 | 2800 | 63/75 2.0''/2.5'' |
| CD-20 | 380V/50Hz | 1.5 | 2.0 | 18 | 35 | 2800 | 63 2.0'' |
| CD-30 | 380V/50Hz | 2.2 | 3.0 | 20 | 40 | 2800 | 63 2.0'' |
| CD-35 | 380V/50Hz | 2.6 | 3.5 | 20 | 43 | 2800 | 63/75 2.0''/2.5' |
| CD-40 | 380V/50Hz | 3.0 | 4.0 | 21 | 50 | 2800 | 63/75 2.0''/2.5' |
| CD-55 | 380V/50Hz | 4.0 | 5.5 | 22 | 60 | 2800 | 75 2.5'' |
| CD-75 | 380V/50Hz | 5.5 | 7.5 | 22 | 75 | 2800 | 75 2.5'' |

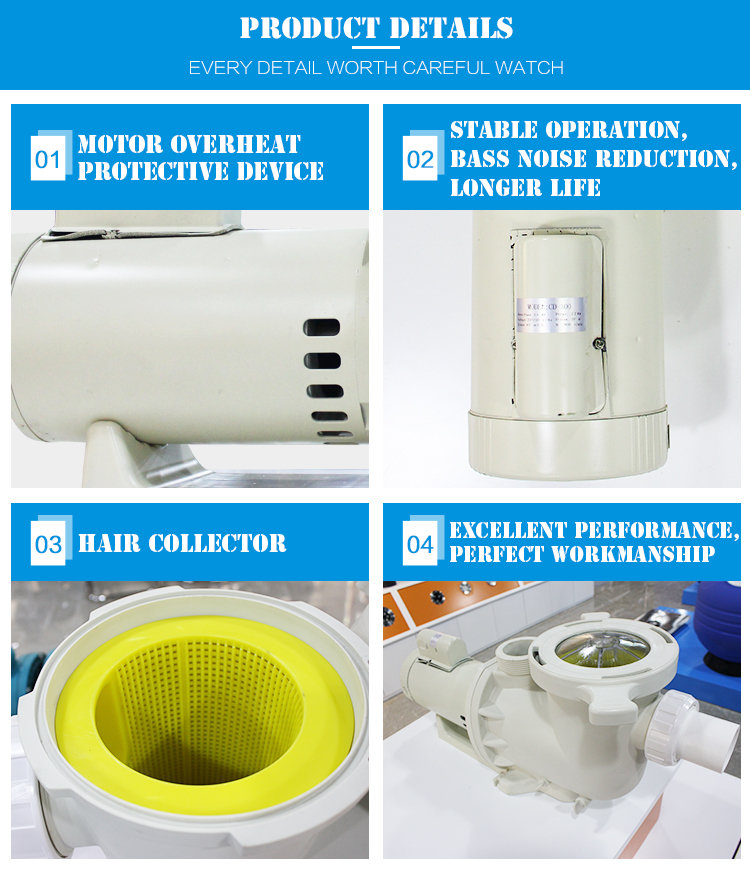

Fenlin CD series pool water pumps Features:
1) Strong core: built-in motor overheat protection device
2) Quick start, silent design: low decibel, less noise, water flow is 30% larger than similar products
3) Safe and reliable: highly sealed design to prevent water leakage

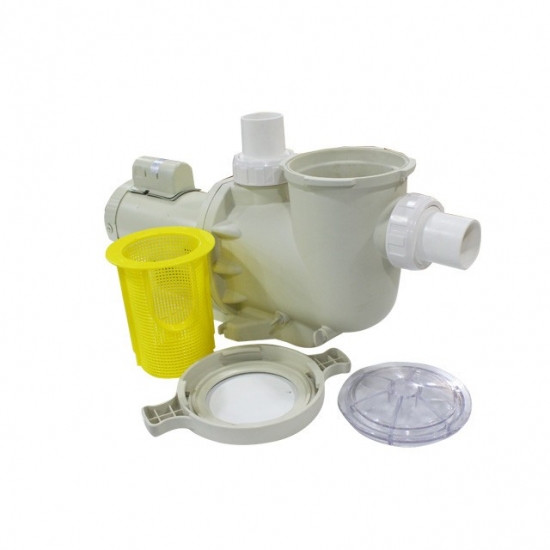

4) Easy to clean: The transparent filter cover can easily observe the condition of the filter cartridge and facilitate cleaning
Fenlin's CD series pool water pumps are compatible with most in-ground pools of most shapes and sizes. In fact, if you don't feel the need for a powerful 3 HP motor, you can even opt for a smaller HP motor of the same model. Fenlin's pool pumps are also compatible with all cleaning systems, filters and jet spas, so you don't need to worry about compatibility issues.
How Long To Run The Pump
The two main factors in determining the length of time that the pool water pump should be run during each cycle are the chemical demand and filtration. During the summer months, the chemical demand is at its peak, and since the bathing load is generally higher during this time, the amount of debris in the pool is higher also. This requires that the water be filtered more thoroughly to remove the excess debris. It is recommended that the pump run 12 hours per day/during the hottest summer months, and 4-5 hours per day during the winter months, and to varying degrees during the spring and fall. The daily cycle can be divided up into multiple cycles, but each cycle should be no shorter than 4 hours, since this is the minimum time it takes for all of the water in the pool to pass through the filter at least once, and it is also the recommended time between the addition of chemicals and the next water test/or pool use.
The water pump in the swimming pool is used to circulate the pool water. As we all know, as the heart of your swimming pool or spa, the pool pump plays a vital role. The water pump is a key part of the health of the swimming pool. We are supplier of swimming pool equipment supplier, providing high quality, wholesale price and reasonable price swimming pool pumps.
