Air/water heat pumps for heating pool water make it possible to prolong the bathing season by taking advantage of the fee calories in the air.Its main characteristics are the energy savings it makes as it adjusts a pool’s setting to deliver optimum performance.
Item NO.:

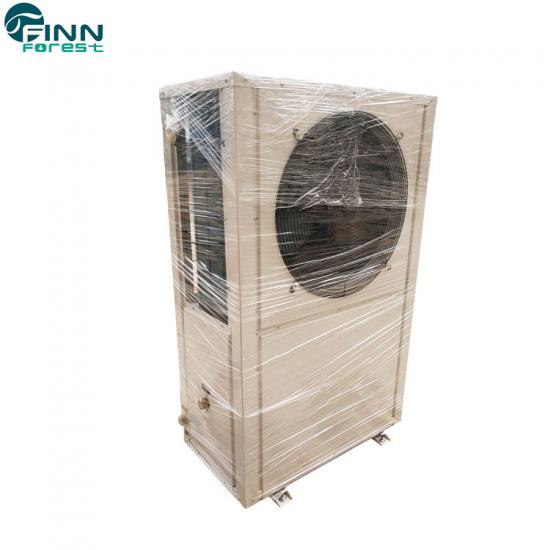

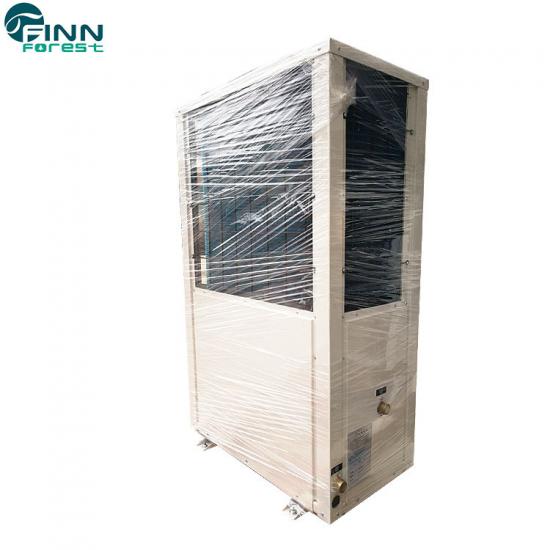

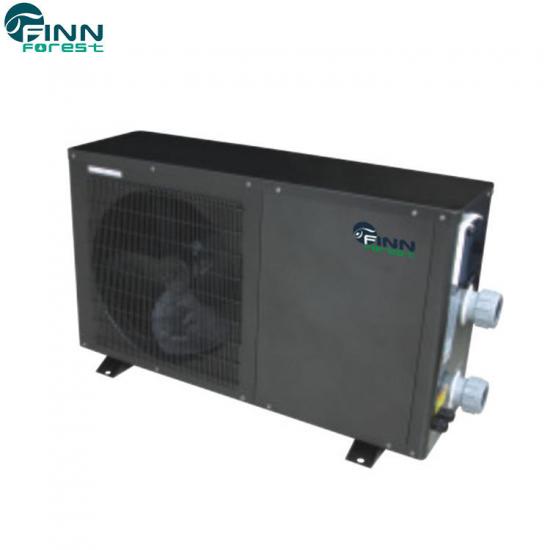

FINN 10R Pool Heat PumpOrder(MOQ):
1Payment:
T/T, L/C, Paypal, cash, etc.Product Origin:
ChinaShipping Port:
Guangzhou or ShenzhenLead Time:
normally 7-15 working days after deposit or accordinglyCommerical Inverter Swimming Pool Heat Pump For Sale
At present, with the tightening of energy supply and the increasing requirements of environmental protection, people are constantly seeking new energy sources that are both energy-saving and environment-friendly, and pool heat pump is one of them. As the pool heat pump can realize the function of transferring low-temperature heat energy to high-temperature heat energy, it can make full use of the heat in natural resources and waste heat resources, and effectively save the primary energy required by the pool, which attracts more and more attention.
FANLAN swim pool heat pump parameter
Model No. |
LSQ03RP |
LSQ5RP |
LSQ10RP |
LSQ15RP |
Rated outlet water temp |
27°C |
27°C |
27°C |
27°C |
Maximum outlet water pump |
60°C |
60°C |
60°C |
60°C |
Heating capacity(kW) |
14 |
27 |
46 |
57 |
Power input(kW) |
2.8 |
4.68 |
9.3 |
11.4 |
Power supply(V) |
220V/HZ |
380V/HZ |
380V/HZ |
380V/HZ |
Pipe size(inch) |
2" |
2" |
2" |
2" |

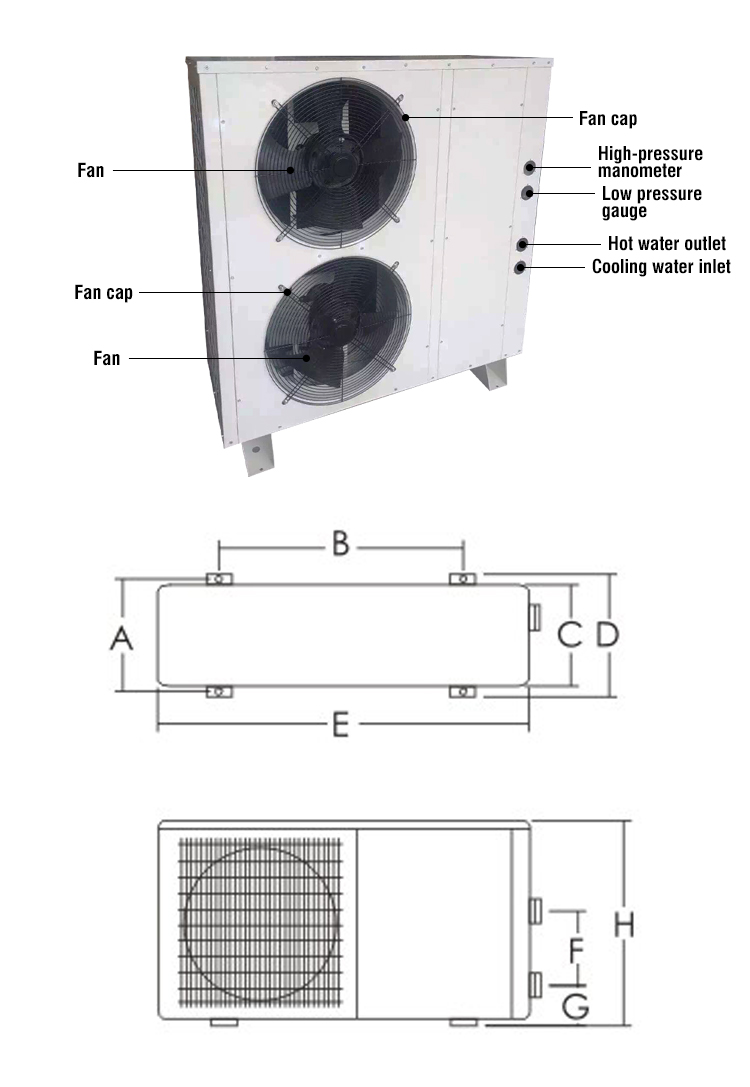

Dimension(mm) L*W*H |
750*690*870 |
750*690*1060 |
1484*730*1060 |
1420*725*1365 |
Ambient air range |
-10°C~50°C |
-10°C~50°C |
-10°C~50°C |
-10°C~50°C |
Weight(Kg) |
100 |
180 |
280 |
360 |
FANLAN swim pool heat pump characteristic

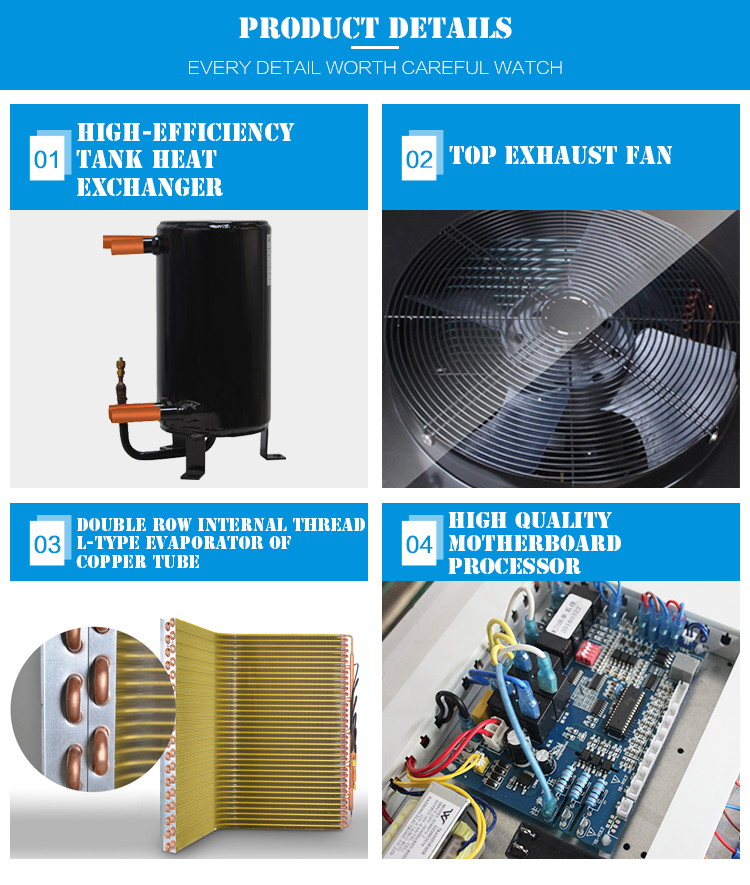

1, Adopt a new generation of flexible Copeland vortex compressor, the unit reliable and higher efficiency;
2, The electronic expansion valve itself has a lot of adjustment ability, thus ensure the more strong throttling capability;
3, Finned tube heat exchanger with internal thread copper pipe and fin using hydrophilic aluminum foil, with efficient heat exchange performance, so as to increase its heat transfer;
4, Unit condenser adopts corrosion-resistant titanium heat exchanger, heat exchange capacity is enough,
can effect comparing is higher (COP can reach more than 5.0);
5, Defrost control technology patents, to ensure that the unit has good heating performance, defrosting faster and more thoroughly.
