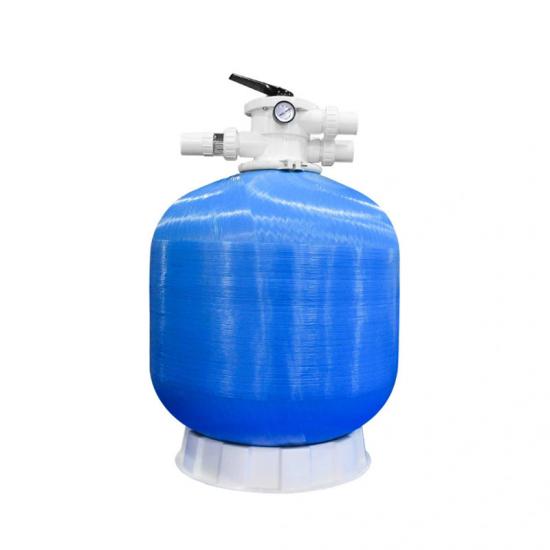

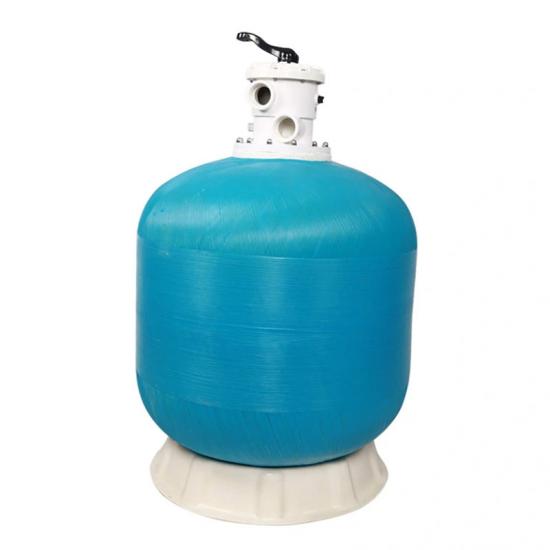

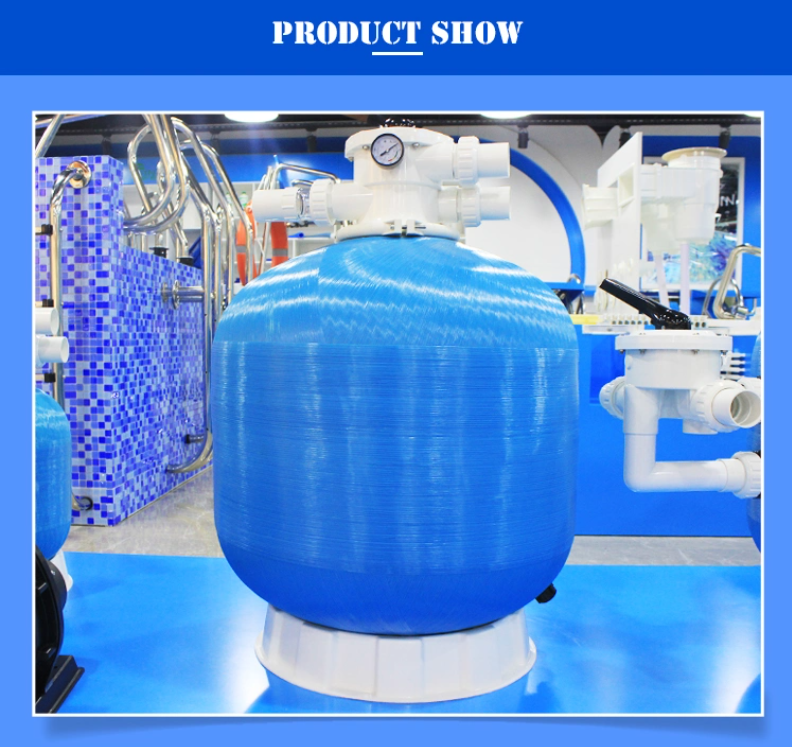

This model sand filter main material is Fiber glass, top mount, side mount and flamse type sand filter 3 way valve have 1.5 inch and 2 inch. Work pressure can reach 2.5 bar
Brand:
Finn ForstItem NO.:
FLOrder(MOQ):
1 PiecePayment:
T/T, L/C, Paypal, Cash, etc.Product Origin:
ChinaShipping Port:
Guangzhou or ShenzhenLead Time:
Normally 7-15 working days after deposit or accordinglySize:
CustomizeMaterial:
FiberglassColor:
CustomizeApplication:
Household or Commecial Swimming PoolPool water sand filter introduce

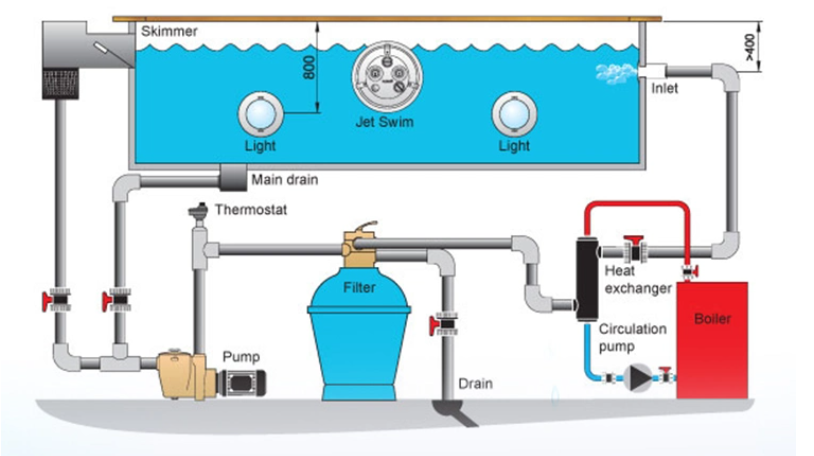

Swimming pool water filter is filter system of whole swimming, it it very important for swimming pool. Filter inside can load activated carbon and sand, then pool water inside filter pass activate carbon and sind can clean water dirty thing.
Pool sand filter diameter have 400mm - 1200mm.

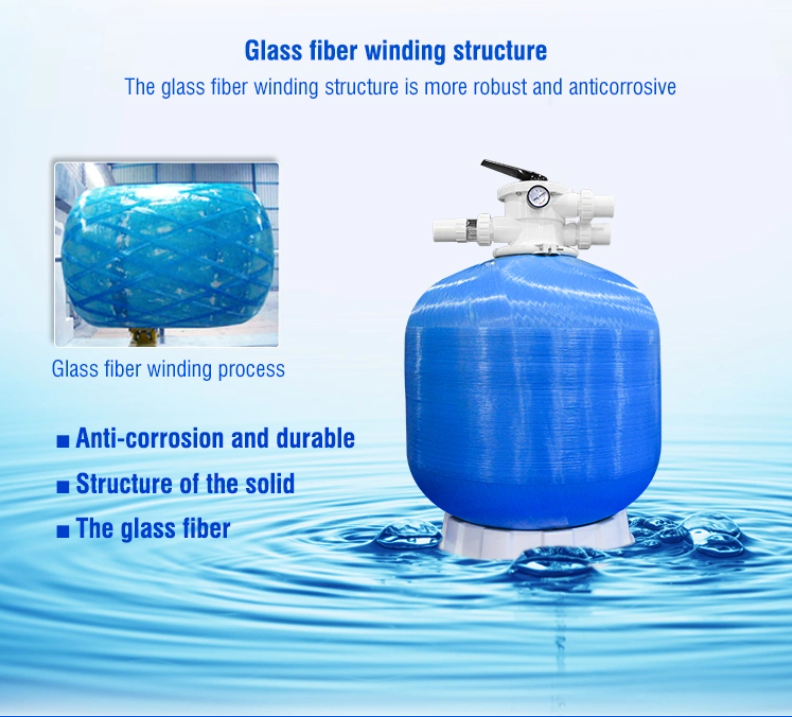

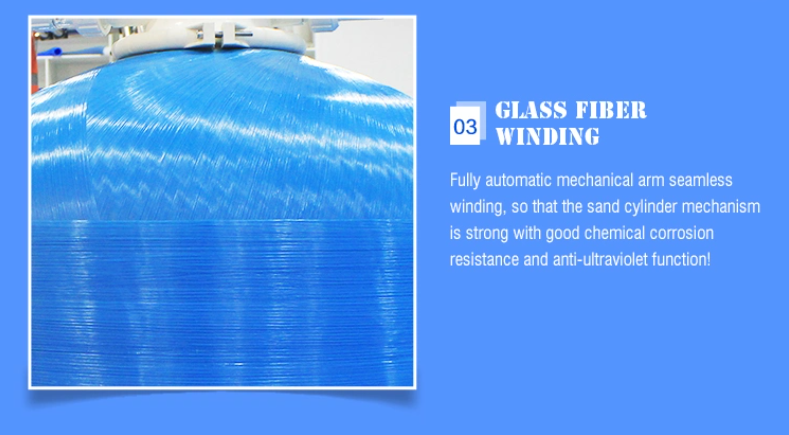

The winding of fibreglass around the filter body makes the filter more durable,
deforming-proof, and resistance to chemical and corrosives.Uniquely designed distribution make a stable and even water flow to improve drainage system.All sand filters with pressure gauge.Easy to install, maintenance free.
1). It is made of fiberglass and high density polyethylene and its designed for
most domestic swimming pools or SPA pool.
2). Valve is designed to allow 360 degree rotation to simplify installation.

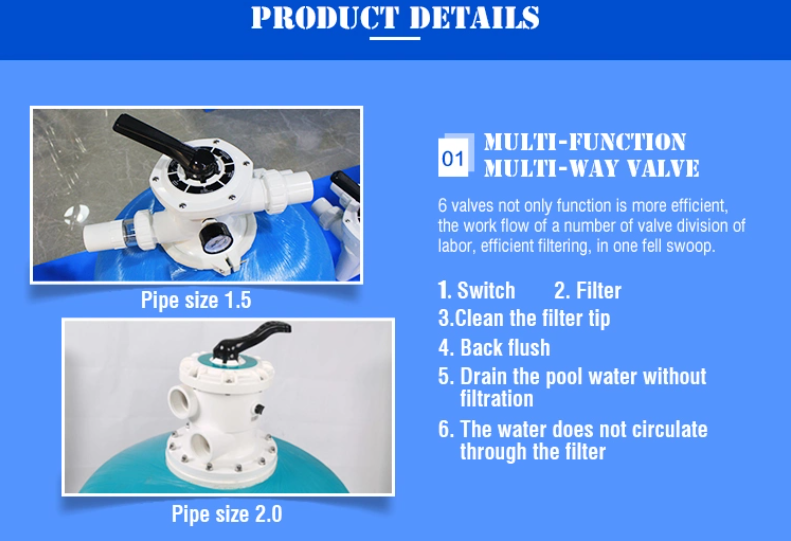

3). Easy-to-use water drain plug and multi-port valve lets you select any of the valves/filter operation
Ideal for:
1) Hotels
2) Motels
3) Clubs
4) Condos
5) Apartments
6) Homes

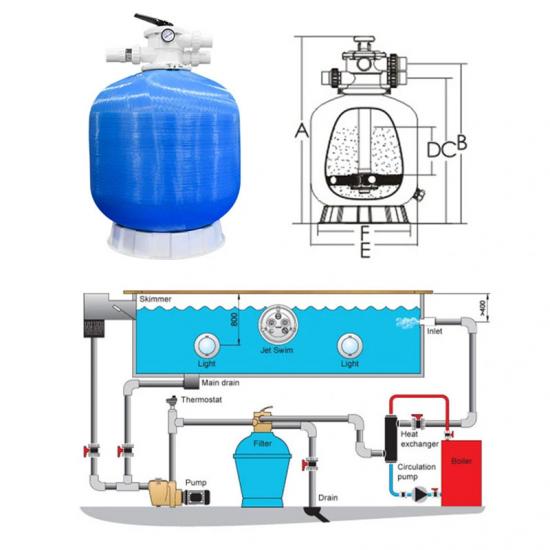

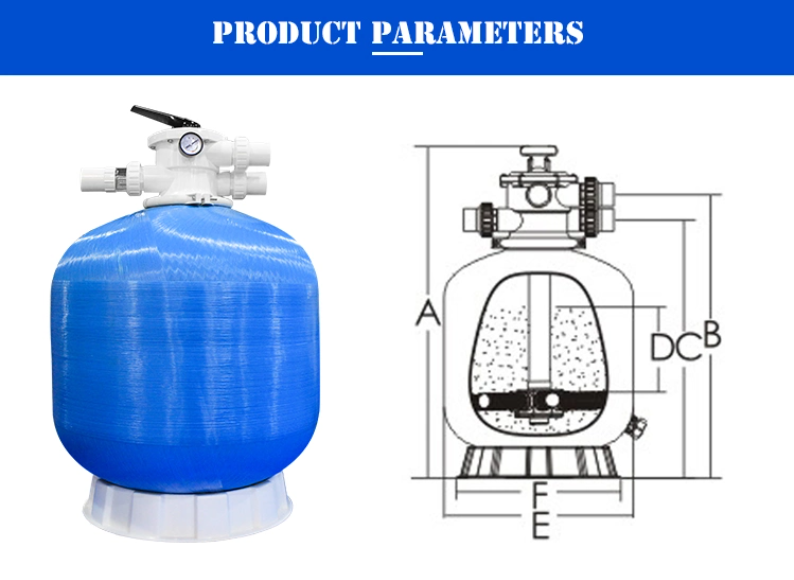

1.Swimming pool filter specification
Model | Diameter | Pipe size (inch) |
Flow (m³/h) |
Filtration area (m²) |
Sand weight (kg) |
(mm) | |||||
ST400 | 400 | 1.5 | 8 | 0.13 | 35 |
ST450 | 450 | 10 | 0.16 | 50 | |
ST525 | 525 | 12 | 0.19 | 65 | |
ST625 | 650 | 17 | 0.32 | 145 | |
ST700 | 700 | 19 | 0.35 | 180 | |
ST750 | 750 | 2 | 21 | 0.4 | 225 |
ST800 | 800 | 24 | 0.5 | 275 | |
ST900 | 900 | 30 | 0.64 | 390 | |
ST1000 | 1050 | 38 | 0.88 | 615 | |
ST1200 | 1200 | 42 | 1.13 | 920 |
2.Feature
1). The winding of fibreglass around the the filter body makes the filter more durable,deforming-proof, and resistance to chemical and corrosives.
2). Uniquely designed distribution make a stable and even water flow to improve drainage system.

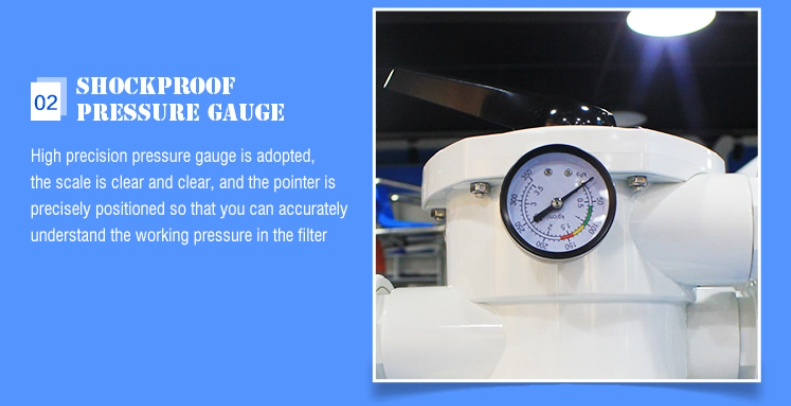

3). All sand filters with pressure gauge.
4). Easy to install, maintenance free.
3.Our advntages
1). Large pressure sand/ water drain for rapid winterizing or servicing.
2). Materials used are dependable and are suitable for all-weather performance.
Because it Made of fiberglass and polyester.
3). Easy-to-use multiport valve let you select any of the valve/filter operation with a simple lever-action.
4). UV-resistance surface allows the filter to work under direct sunlight.
5). Quick assembly and precise alignment of components.
4.Our service
We supply a full set swimming pool equipment for customer according to pool design and request, also we supply wholesale pool equipment for wholesalers. Every product will be tested before shipment.
Product include all system for pool, filter & circle system, lighting system, cleaning, heat, disinfection system, other equipment, ladder, lane rope, grating etc.
1). We provide you 100% guarantee product and service, one year warranty from the dispatched time.
2). Our company estabilished in 2005, has many years experience for producing sand filter. We have been done many big projects and recognized by many companies.
3). Profession on Export:Authorized import & export licence, we have specific persons to manage this part.
4). Fast & Cheap Delivery:We have long term cooperation forwarder, who can deliver our product to every corner of the world with competitive freight.
