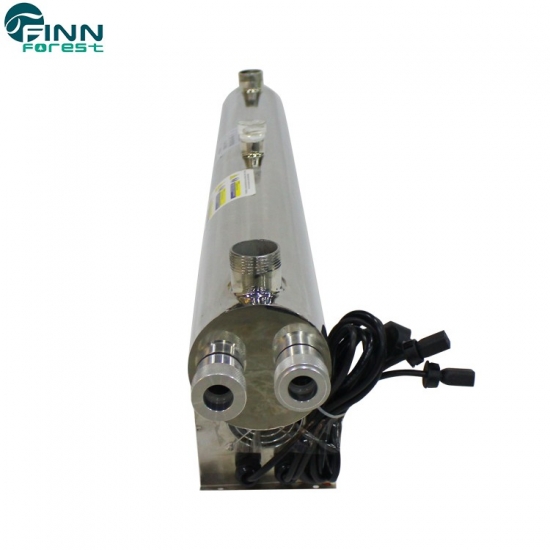

Fenlin turns the hassle and inconvenience of pool maintenance into the freedom of pool maintenance. Our UV light sterilizers do it better than anything else on the market. Fenlin harnesses the power of UV light to eliminate microorganisms, reduce chemical usage and eliminate toxic by-products. With Fenlin pool ultraviolet sterilizer, your spa or pool will be safer, healthier and more manageable than traditional sanitation methods.
Brand:
Finn ForstItem NO.:
Pool Equipment UV Ultraviolet LightOrder(MOQ):
1Payment:
T/T, L/C, Paypal, cash, etc.Product Origin:
ChinaColor:
/Shipping Port:
Guangzhou or ShenzhenLead Time:
normally 7-15 working days after deposit or accordinglyMaterial:
Stainless SteelLogo:
CustomizedApplication:

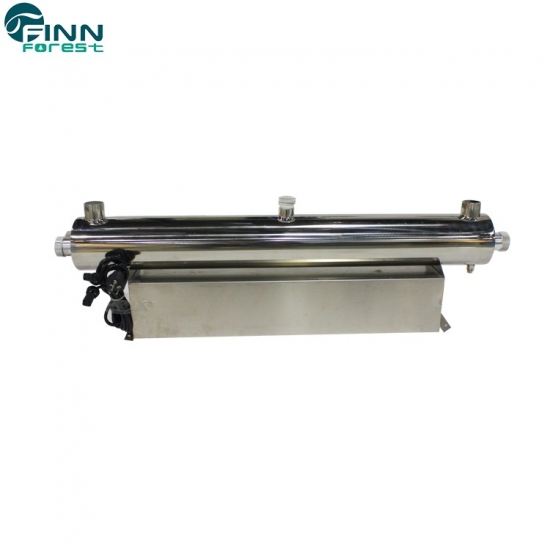

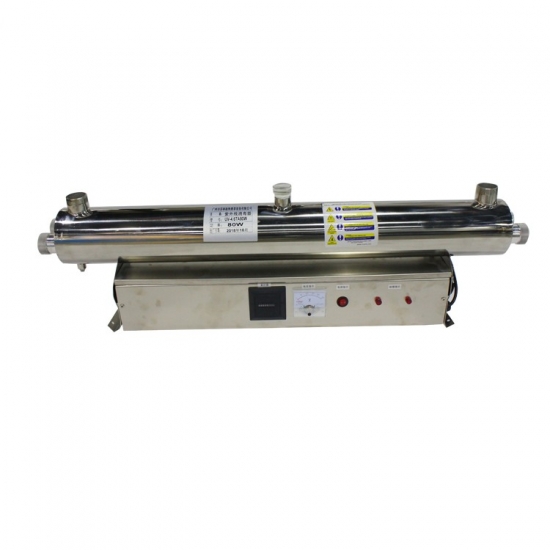

Swimming PoolHigh Efficiency UV Pool Ultraviolet Sterilizer With Light
Pool ultraviolet (UV) sanitizers utilize a cutting-edge, non-chemical process that uses germicidal UV light rays to sanitize water, air and surfaces that may be contaminated. Ultraviolet pool sanitizers emit a high intensity germicidal light ray that alters or disrupts the DNA or RNA of targeted organisms such as algae, bacteria, viruses, cysts and protozoa.
Product Parameters:
| Model | Handle Water Capacity（T/H） | Lamp Equipment（Power*qty） | Appearance Size（mm）L*W*H | Inlet/Outlet Size | ||
| Clean Water | River Water/Underground Water etc | Purified Water/Running Water etc | ||||
| UV-4.6TC80W | 4.6 | 2.2 | 3.0-4.0 | 40W*2 | 950*114*290 | DN25 |
| UV-8TC120W | 8 | 4 | 5.0-7.0 | 40W*3 | 950*159*360 | DN40/1''½'' |
| UV-12TC160W | 12 | 6 | 8.0-10 | 40W*4 | 950*180*480 | DN 50/2'' |
| UV-15TC200W | 15 | 8 | 10.0-12 | 40W*5 | 950*220*550 | DN 50/2'' |
| UV-20TC240W | 20 | 10 | 15-18 | 40W*3 | 950*220*550 | DN 65/21/2 |
| UV-25TC320W | 25 | 13 | 18-22 | 40W*4 | 950*220*550 | DN 65/21/2 |
| UV-30TC400W | 30 | 15 | 22-25 | 440W*5 | 950*220*550 | DN 80/3'' |
Principle
The design of UV water disinfection systems has been carefully conceived to provide an adequate germicidal dose throughout the disinfection chamber. When used for UV disinfection, the dose is a function of time and the intensity of UV radiation to which the water is exposed. The exposure time is related to the flow rate, the higher the flow rate, the shorter the exposure time or the lower the flow rate, the longer the exposure time. UV intensity is the energy emitted by a germicidal lamp per unit of time. Dose is the product of UV intensity and exposure time.
Usage Restrictions
Ultraviolet water disinfection systems are not intended to treat water with significant contamination or intentional origin, such as raw sewage, nor to convert wastewater into microbially safe drinking water.
Water Quality (inches)
Water quality plays an important role in the transmission of germicidal UV rays. It is recommended that water does not exceed the following maximum concentration levels
Maximum Concentration Levels (Very Important)：
| Iron | ≤0.3ppm（0.3mg/L） |
| Hardness | ≤7gpg（120mg/L） |
| Turbidity | ≤1NTU |
| Manganese | ≤0.05ppm（0.05mg/L） |
| Tannins | ≤0.1ppm（0.3mg/L） |
| UV Transmittance | ≥750‰ |
Effectively treating water with higher concentration levels than listed above can be accomplished, but may require added measures to improve water quality to treatable levels. If, for any reason, it is believed the UV transmission is not satisfactory, contact the factory.
Is UV disinfection effective?
Ultraviolet light is considered the best available technology for swimming pool disinfection. Studies have shown that in chemical disinfection, 90% of the chemical is used for oxidation and 10% is used for hygiene. UV light does both. Did you notice the enviable water quality at the Olympics? The underwater camera was able to clearly capture the entire pool. The secret? It is UV disinfection. UV is now installed in hundreds of commercial aquatic centers across the country.
Are UV Sanitizers Safe?
UV sanitizers are very safe. The UV lamp is housed in a sturdy high-strength polymer housing. UV light is a physical process rather than a chemical process, making UV the most environmentally friendly option for pool hygiene. No residual effects harmful to humans, animals, aquatic life, plant life or the environment. UV light can also minimize the need to generate, handle, transport or store hazardous chemicals.

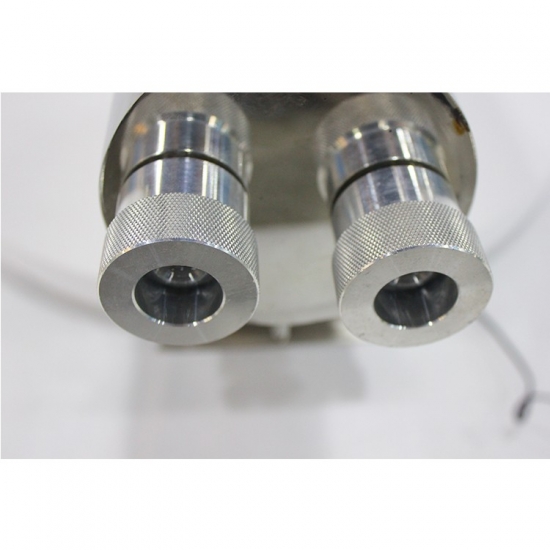

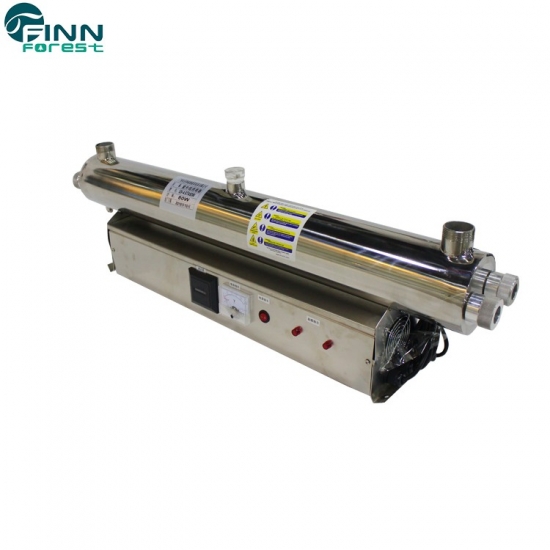

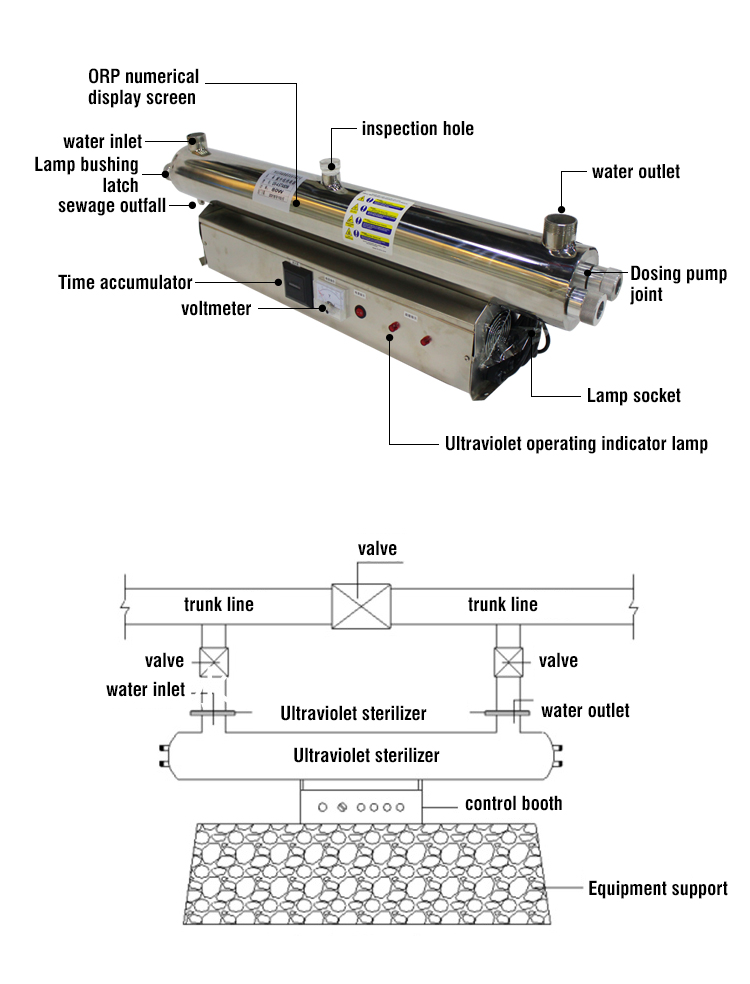

Show details:
1) Voltage indication: pointer voltmeter, which can accurately measure the input voltage of the sterilizer
2) High-quality lamps: low-pressure and high-intensity UV lamps, with long lamp life (about 9000 hours)
3) Timer: record the working hours of the sterilizer in real time
4) Stainless steel cavity: The high-brightness cavity is polished inside and outside, which greatly enhances the intensity of ultraviolet radiation and enhances the sterilization effect.

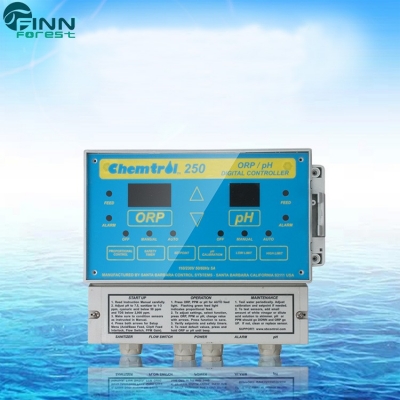

Water quality monitoring is a basic activity of society, and the water quality of swimming pool environment directly or indirectly affects the stability and health of human society. Swimming pool water quality monitor have developed to produce more accurate data and repeatable measurements, while requiring less maintenance.
Learn More

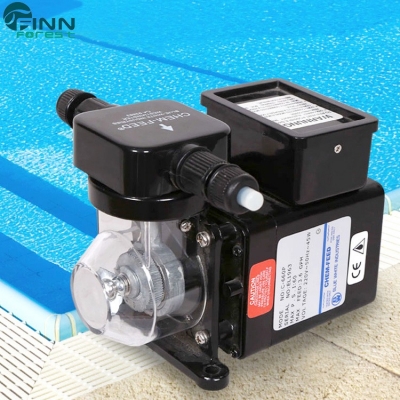

External control chemical quantity, when the chemical exceeds a regulated level, the pool dosing pump will drain off water automatically. When the water pump is closed, the chemical does not suck water anymore. Putting the chemical from the top, it is very convenient and easy to control. In general, trichloride and bromide are more proper to be the chemical. It is important to choose a suitable and durable dosing pump. FenLin is one of the trusted suppliers of swimming pool equipment, with various metering pumps to choose from. You can purchase the most suitable swimming pool equipment in bulk in Fenlin.
Learn More
Pool chlorine feeders，also called chlorinators，maintain a consistent feed of chlorine into the pool of water to ensure the effective sanitation of swimming pool water.Chlorine activity in any pool usually decreases with time because its compounds are degraded.Therefore chlorine has to continually be added to the pool at the right intervals.
Learn More

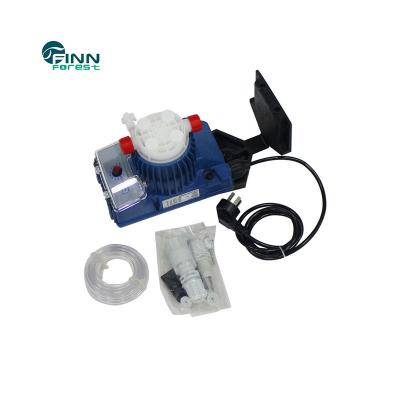

A basic pool dosing pump simply pumps chlorine from a drum into your plumbing when the filter is operating.Your filter will dispense this chlorine back into the pool .You can adjust the rate at which these pumps disense chlorine to adjust for different weather conditions seasons.
Learn More

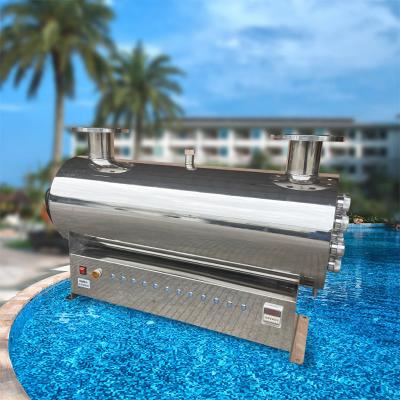

UV disinfection systems optimized for swimming pool disinfection and chloramine reduction.
Learn More

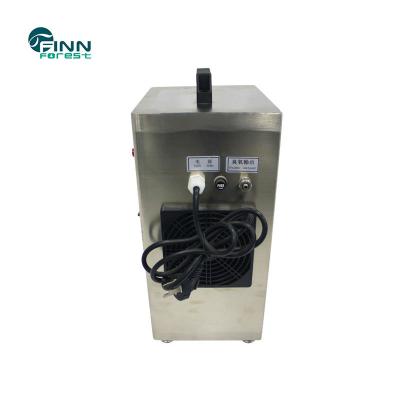

Ozone generator is mainly used in dedicine, water, pure water, mineral water, secondary water suply, swimming pool, acuaculture water, food and beverage industries such as water disinfection essence processing, and chemical industry, papermaking industry such as degreasing, bleaching, nleaching, for life, industry, hospital sewage treatment (sterilization, remove BOD, COD, ect.), as well as the life sewage, industrial cooling water reuse treatment, etc.
Learn More

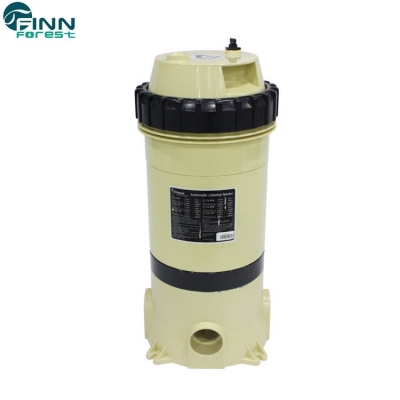

Simple, economical and professional way to chlorinated your pool automatically. Spagold's efficient, corrosion-proof automatical feeders install easily on new or existing pools or spa and hold up to 4.2lbs. of large of small tri-chlor slow dessolving tables or sticks-enough to provide a week supply of chloirne senitizer for large pools and longer for smaller pools. The easy to use integral dial control valve lets you accurately adjust the rate of chlorination needed to keep your pool sparkling pure.
