Swimming pool exchanger application range: Various types of home swimming pool, swimming pool commercial center, spa center, normal temperature swimming pool, swimming pool, the pool or nonstandard special pool heat pump. Also applies to the hotel, hotel, factory, school, bathroom etc
Brand:
Finn ForstItem NO.:
MFOrder(MOQ):
1 PiecePayment:
T/T, L/C, Paypal, Cash, etc.Product Origin:
ChinaShipping Port:
Guangzhou or ShenzhenLead Time:
Normally 7-15 working days after deposit or accordinglySize:
CustomizeMaterial:
Stainless Steel 304 / 316Color:
Black and Stainless SteelLogo:
CustomizeApplication:
Sauna and Swimming Pool

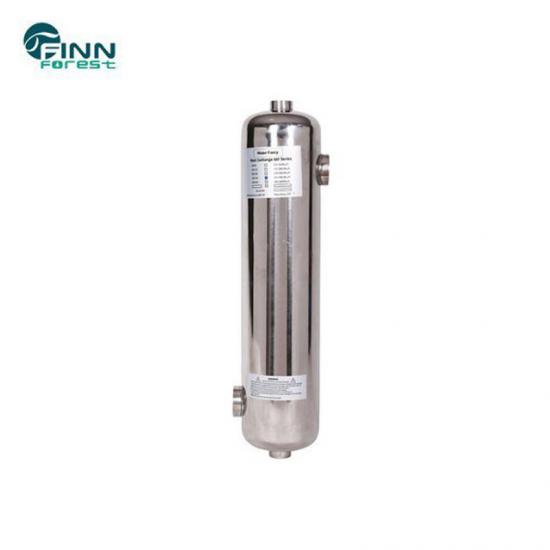

1. Description

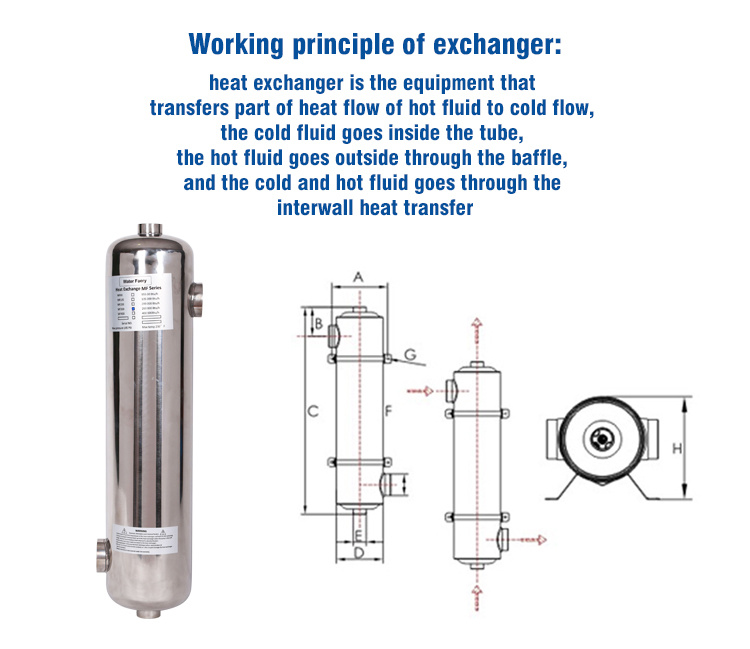

Heat exchanger are highly engineered for fast heating. High capacity and easy use.Featuring high efficiency Heat Transfer Capabilities. Smooth tube and shell

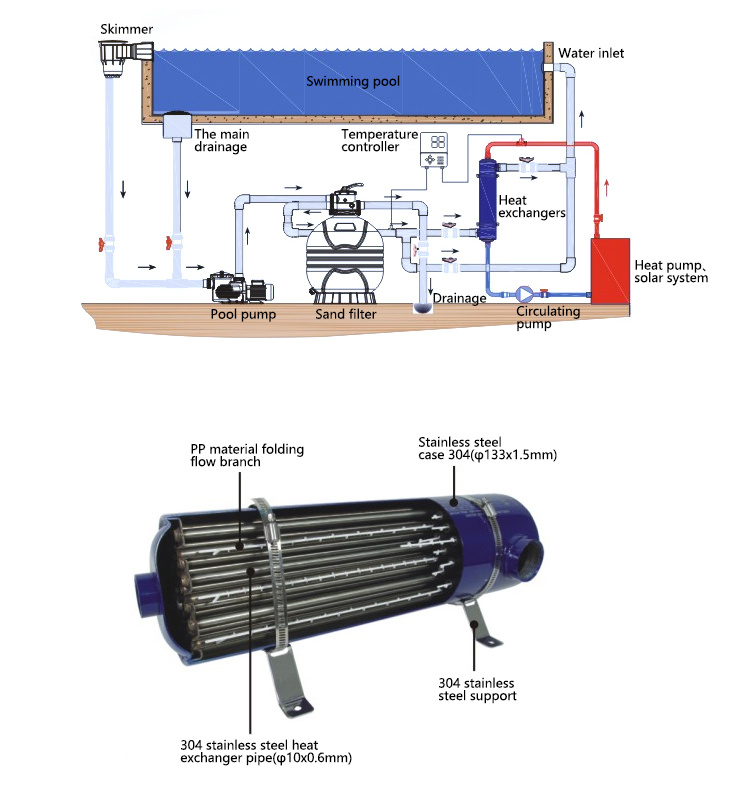

design ensures high velocities inside the heat exchanger maximizing heat transfer. Ideal for solar applications for pools, hot tubs, hydronic heating and snow melt applications.
2. Swimming pool exchanger parameter
|
Model |
Power (kw) |
Heat Water Flow (l/min) |
Cold Water Flow (l/min) |
Heat Transference |
Length (mm) |
|
|
SWFT |
(m2) |
|||||
|
MF80 |
28 |
18 |
150 |
2.0 |
0.10 |
310 |
|
MF135 |
40 |
25 |
200 |
3.2 |
0.30 |
390 |
|
MF200 |
60 |
30 |
250 |
4.6 |
0.45 |
590 |
|
MF260 |
75 |
35 |
300 |
6.4 |
0.60 |
590 |
|
MF400 |
120 |
50 |
360 |
12 |
1.10 |
1090 |
3. Swimming pool exchanger advantages
High efficiency,coefficient up to 14000 w/m2 deg C,Heat exchanging capacity 3-7 times traditional equipments. Compact configuration, occupy small area, one tenth as the traditional equipments. Stainless steel and/or titanium, material, endure high temperature, pressure and corruption. Helix screw thread elasticity heat exchange bundle, eliminate the stress. Design flux speed is 5.5m/s, less dirt. ASME standard
VIII-1 Big flow volume Compactable Easy installation and durable.
4. Swimming pool exchanger standard feature

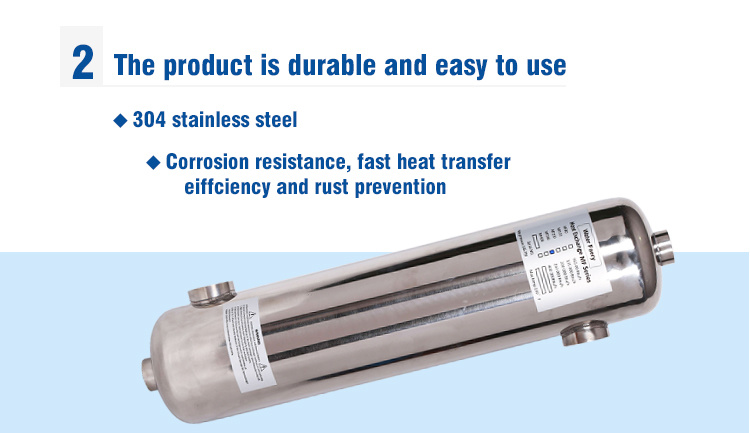

1). Costructed of high quality corresion resistant stainless steel.
2). Rolled formed to shape and then precision welded.
3). Specially designed built in flow restrictor to assure maximum heat exchanger.
4). Designed to minimize pressure loss in the heating system.
5). Loak tested to suure that are totally funtionable.
6). Compact in size and require a minimum installation space-light weight.
7). Significant energy savings.
8). Available for all types of swimming pools, SPA and hot tubes.
9). Equipped with stainless steel holding brackets.
