Swimming pool sand filter equipment High-speed filtration sand tank is made by winding glass fiber, which is corrosion-resistant and pressure-resistant (the normal working pressure is 2.5-4kg/cm2, and the sand tank with special working pressure can also be provided). Suitable for water filtration in swimming pools, water parks and massage pools; Industrial water purification, seawater and freshwater aquaculture, etc.
Item NO.:
Large Radar Pool Sand FilterOrder(MOQ):
1Payment:
T/T, L/C, Paypal, cash, etc.Product Origin:
ChinaShipping Port:
Guangzhou or ShenzhenLead Time:
normally 7-15 working days after deposit or accordinglyQuarts Large Swimming Pool Sand Filter Good Price
The pool water passes through the filter, and tiny dirt is captured and filtered by the sand bed. The filtered clean water is returned to the pool through the control switch at the bottom of the filter and then through the pipeline. This whole set of procedures is continuous and automatic, and provides a complete cycle process for the pool sand filter and pipeline system.Series flange side mount valve sand filters will provide clean water for commercial users. They produce more filtered water with less pump horsepower. The fiberglass winding design enables the filter to be durable, deforming-proof and corrosion-resistant.
Pool Sand Filter Product Parameters:
|
Model No. |
Tand dia（mm） | High（mm） | Pipe Size（inch） | Filter Area（m2） | Silica Sand（kg） | Flow（m3/h） | Pressure（kg/cm2） |
| SF-1200 | 1200 | 1450 | 3 | 1.14 | 1100 | 60 | 2.5 |
| SF-1400 | 1400 | 1520 | 4 | 1.56 | 1900 | 76 | |
| SF-1600 | 1600 | 1760 | 4 | 2.01 | 2600 | 100 | |
| SF-1800 | 1800 | 1940 | 4 | 2.54 | 3500 | 129 | |
| SF-2000 | 2000 | 2420 | 6 | 3.14 | 4100 | 157 | |
| SF-2400 | 2400 | 2520 | 6 | 4.34 | 8900 | 218 | |
| SF-2500 | 2500 | 2680 | 6 | 4.91 | 11000 | 268 |
Large Radar Sand Cylinder Water Pool Sand Filter Feature :
--Fiberglass tank,deforming-proof, corrosion-resistant and abrasion-proof.
--Multi-port valve for easy operation.
--Uniquely designed distribution system makes stable and efficient water flow.
--Besides silicon sand, filtration media can use other materials as well.
--Active carbon for filtering away odor and an organic compound.
--Soft water resin for softening and filtering away the minerals.
--Clean water resin for filtering away organic compound color, fluoride, and algae.
--Nitrate selectable resin for fleshing the fishpond.
--Easy installation and maintenance-free.
Pool Sand Filter Working Procedure Description:
1. FILTER (normal filtering)
2. BACKWASH (backwashing, discharging dirt accumulated in the filter)
3. RINSE (the dirt discharged in the sewage pipe after backwashing)
4. WASTE (direct drainage without filter)
5. RECIRCULATE (without filter circulation)
6. CLOSED (turn off the filter equipment.
Sand Cylinder Performance Characteristics:

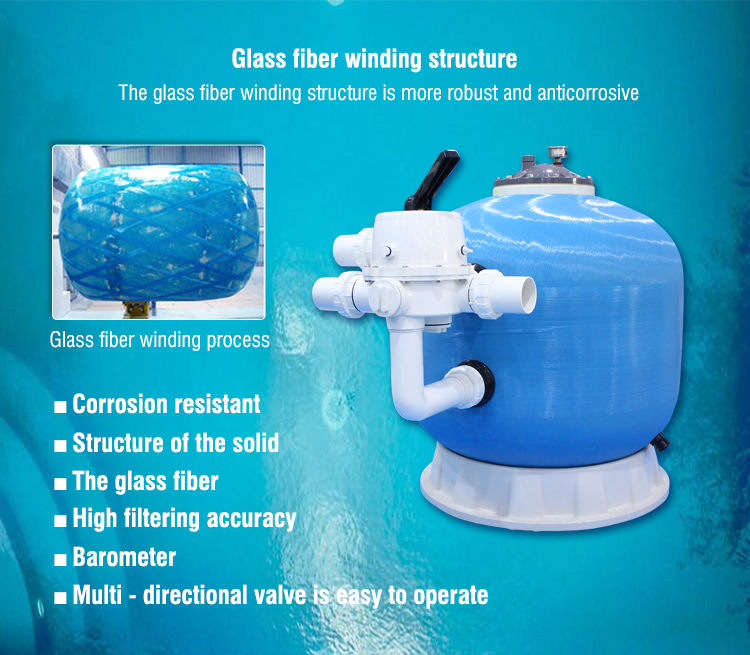

1. Reinforced polyester seamless shell, glass fiber winding spherical structure makes the sand cylinder stronger, and the surface is treated with non-toxicity.
2. Anti-corrosion, anti-wear, anti-UV, anti-O3, sun protection, universal for sea and fresh water.
3. The unique water distributor and water collector form balanced hydraulic water flow, and the culvert drainage system has high efficiency.
4. High filtration precision, good effluent quality and effluent turbidity < 20um.
5. The filtration rate is high, which can reach 10~50m3/h/m2.
6. The multi-way valve is convenient and simple to operate, and is provided with a transparent sewage pipe to observe the clarity of the washing water.
7. Equipped with barometer, manual vent valve and drain valve.
8. Bolts, nuts and various fasteners are made of stainless steel.
9. Fast cleaning, no loss of filter material, simple operation and maintenance, and the cylinder body is not broken for ten years.
swimming pool sand filter as a water treatment device is very hot sale. The swimming pool sand filter is made of fiberglass, which is of high quality. Quartz sand filter is one of the most popular pool filters
Learn More

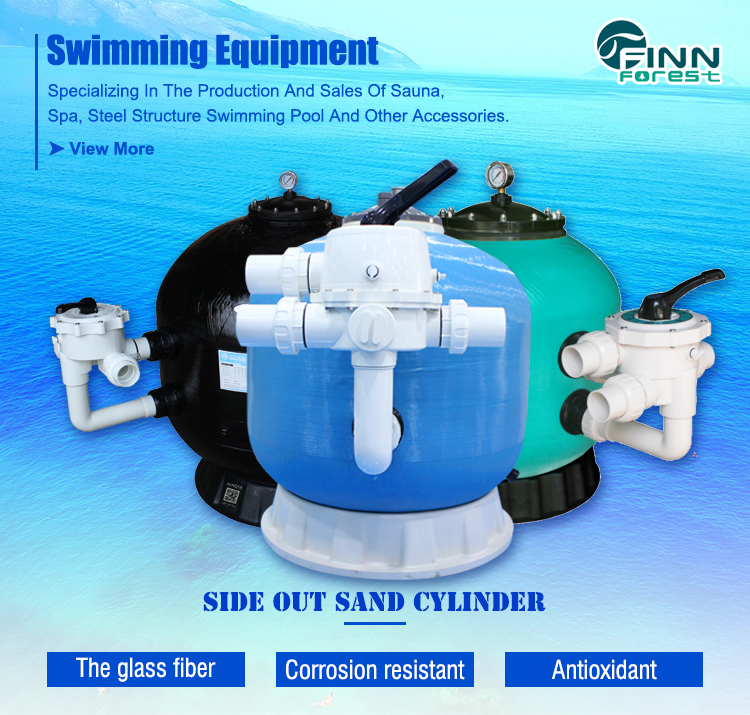

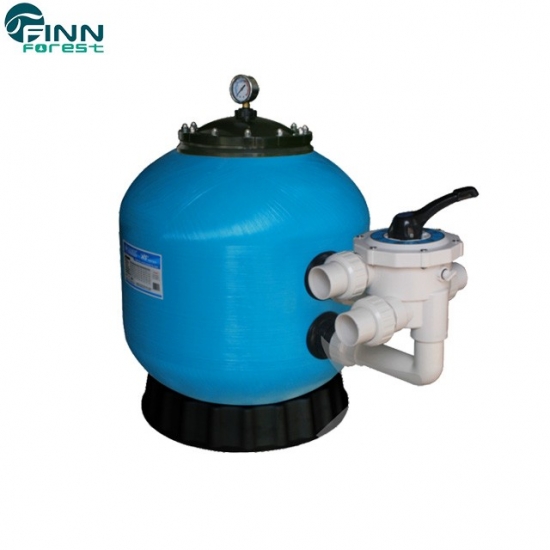

Side mount sand filter is constructed by the latest Engineering Technology. The improvement of flowability provides an extra pure water filtration. Tank diameter ranging from 800mm to 2200mm, side mount sand filter is mainly used for large filtering system. It is large flow treatment capacity and small occupied space are suitable for the large swimming pool and water park.
Learn More
Horizontal pool sand filter have been using the latest pool filter technology which is suitable for many different weather conditions and have reached many different market standards. The filters are durable, anti-corrosive, UV-resistant and user-friendly. The sand filters are applicable for use in all types of pools such as in-ground pools, in-ground spas, as well as other water features.
Learn More
Pool sand filter has uniquely designed distribution make a stable and even water flow to improve drainage system, easy to install, maintain free.
Learn More

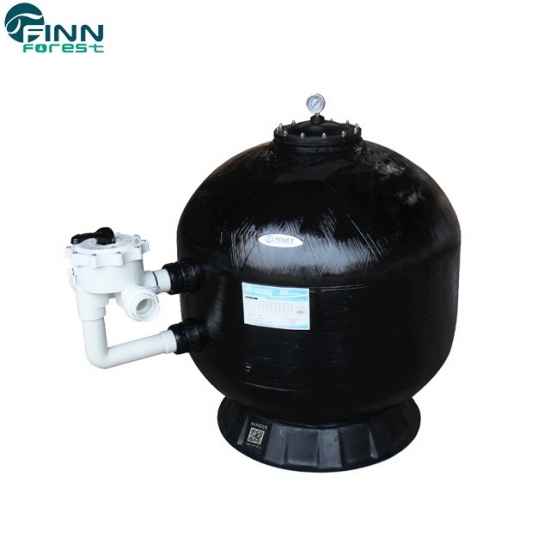

The Finn Forst 30-Inch Side-Mount Pool Sand Filter is molded of corrosion-proof material for all-weather durability and long-lasting performance
Learn More
The pool sand filter is mainly made of advanced glass fiber and polyester, so as to ensure that the Perry filter has a firm structure, is not easy to wear and is durable. The six-position valve of the filter can be used for six different procedures, and it is easy to operate. It can be used with a variety of filter materials, such as filter sand, activated carbon and resin. Especially suitable for water purification, sewage treatment, swimming pools, fish ponds, massage pools, etc.
Learn More
Fenlin's pool sand filter is made of high-quality stainless steel. As an experienced manufacturer and supplier of pool equipment in China, Fenlin provides professional and technical automatic equipment, fully automatic welding, grinding and polishing of pool sand filter. Our products are sold directly by the factory, with guaranteed quality and high customization. Fenlin's stainless steel swimming pool sand filter is resistant to high temperature, high pressure and corrosive environment.
Learn More
The pool water passes through a filter, and tiny dirt is captured and filtered by the sand bed. The filtered clean water is returned to the pool through the control switch at the bottom of the filter and then through the pipeline. This whole set of procedures is continuous and automatic, and provides a complete cycle process for the pool sand filter and pipeline system.FENLIN is a manufacturer specializing in the production of pool sand filter with 17 years of experience. We are committed to providing you with the best products and services at wholesale prices and factory prices.
Learn More
