Brand:
Water FaeryItem NO.:
FN-03 Integrative FilterPayment:
T/T, L/C, Paypal, Cash, etc.Product Origin:
ChinaShipping Port:
Guangzhou or ShenzhenLead Time:
normally 7-15 working days after deposit or accordinglySize:
CustomizeLogo:
CustomizeApplication:
Swimming Pool
Integrated Water Filter Features
1. Environment protecting and high-efficiency disinfection system
2. Energy saving filtration system
3. The fully-automatic electronic control system
4. No-pump-room design.
5.No piping and no plant room. Easy to installation and simple maintenance.

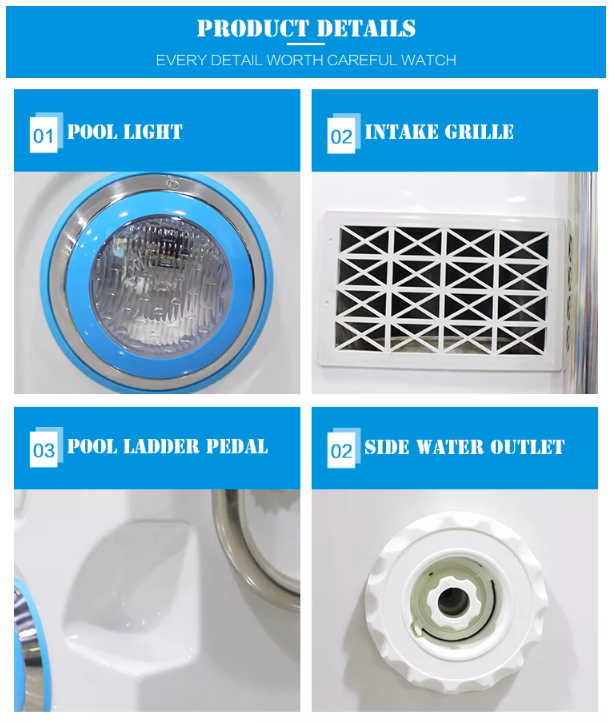

6. Underwater LED illumination system
7. Non-corrosive
Integrated Water Filter Technical characteristics
| Motor power(pump): | 2HP 3HP |
| Flow rate | 25 m3/ h 35m3/h |
| Voltage | 220V/50hz |
| Operating noise | ≤50Db |
| Filter media | Filter bag |
| Disinfection | Sterilizer |
| Ozone | 500mg (Optional) |
| Efficiency | ≤5μ |
| External controller | With time |
| Enclosure | Lucite acrylic |

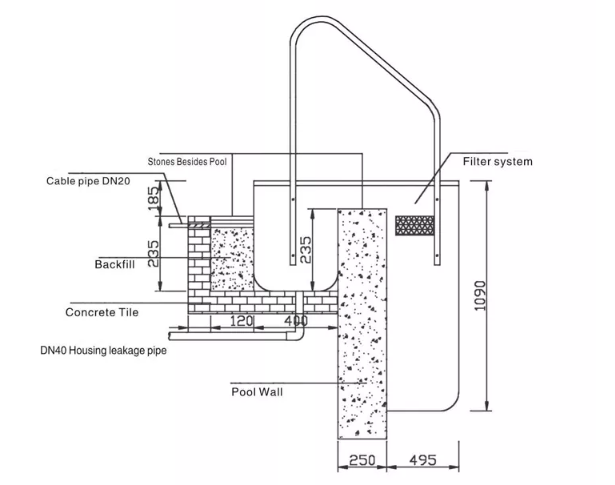

| Installation | Wall mounting |
| Dimension | 1100*660*1020mm |

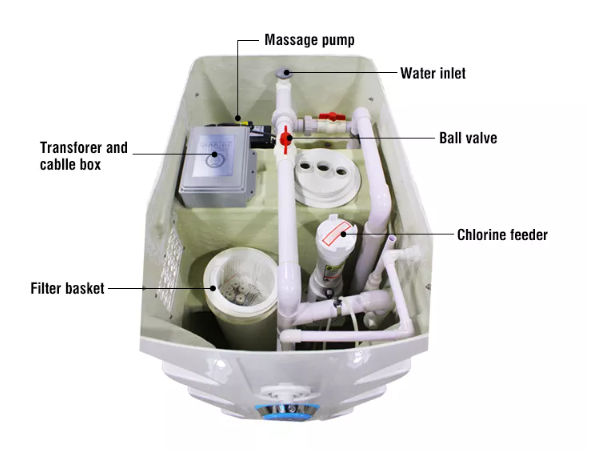

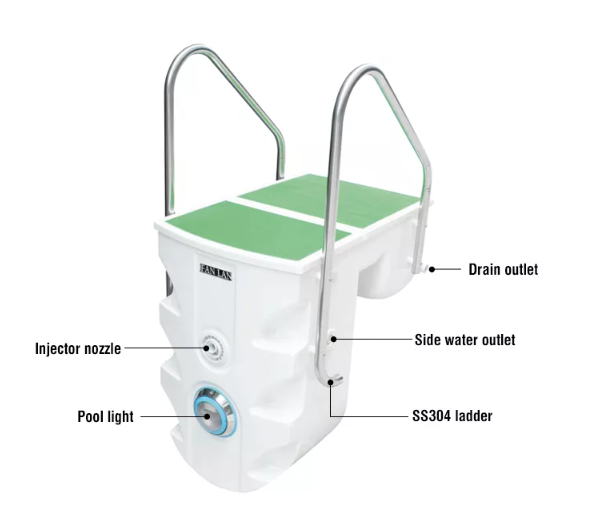

Included part
| Fitting | Y |
| Circulate pump | Y |
| Filter bag with basket | Y |
| Suction nozzle | Y |
| Electric control box | Y |
| Chlorine sterilizer feeder | Y |
| Massage nozzles | Y |
| Lotic nozzles | Y |
| Underwater light | Y |
| Time controller | Y |
| Vapour controller | Y |
Integrated Water Filter Advantages:
1. The filter enclosure is made of high-quality Lucite acrylic.
2. One-time Lucite acrylic injection mold is high technique and craftsmanship so that it's good-looking and durable. Lucite acrylic is good for acid resistance and aging resistance, and easy to clean.
3. It's changing to traditional products, which no need machine house, simple to install, convenient operation and excellent performance.
4.Thereby acrylic filter can reduce the construction cost, also according to swimming pool specifications and standards.
